Exposed Fasteners

Style-Rib

Style-Rib

Style-Rib

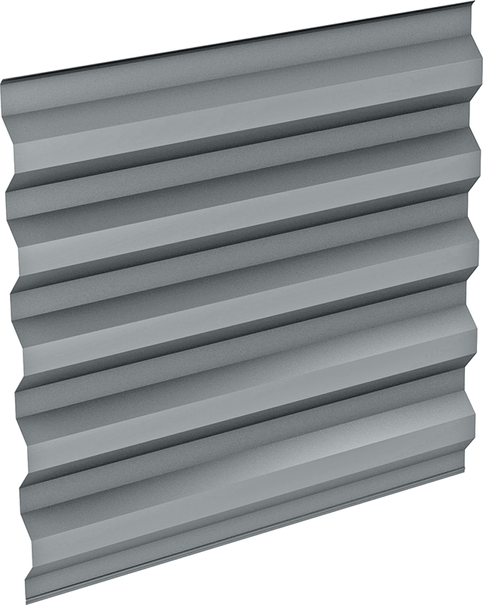

The Style-Rib panel is a high strength, durable panel with 36” coverage, and uniformly spaced ribs at 7.2” on center with available staggered or reversed perforation pattern. The perforation pattern is available in a wide variety of options, and allows for air circulation and natural light to pass through, while providing additional security and unique aesthetic appeal. All Exposed Fastener metal wall panels may be installed in a variety of rainscreen applications to form a complete wall system, ranging from an uninsulated screen wall to BW Systems.


Width

36″

Height

Nominal 1 1/2″

Length

5′-0″ to 40′-0″

Exterior Profile

Nominal 1 1/2″ rib height on center with staggered patterns

Exterior Face

G90 galvanized steel 24, 22, 20, and 18 Ga. in un-embossed or non-directional embossed (18 Ga. not available)

Joint

Overlapping

Finishes & Colors

Standard I, Standard II, Premium I, and Premium II color options. Please see Color Chart below for all available colors.

Fastening

Exposed Fastening System
