Exposed Fasteners
MR3-36

MR3-36

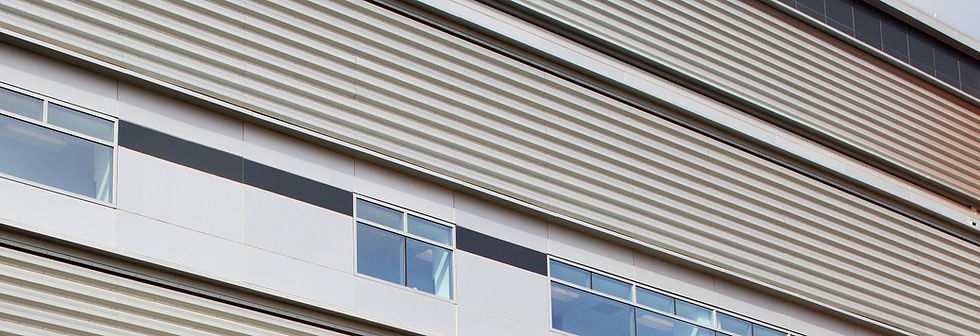

The 3” depth MR3-36 exposed fastener metal wall panel has three evenly spaced ribs with available staggered or reversed perforation pattern. The perforation pattern comes in an extensive variety of options. They combine an airy aesthetic with outstanding performance as they blend industrial and other applications with their surroundings. The panel’s design also allows for air circulation and natural light to pass through, while providing additional security and unique aesthetic appeal. EcoScreen Perforated panels create a screen wall using either 20-gauge stainless steel or 0.04” painted aluminum by using our unique fabrication process.
Width | 36″ |
Height | 3″ |
Length | 5′-0″ to 40′-0″ |
Exterior Profile | 3″ rib height on center with staggered patterns |
Exterior Face | G90 galvanized steel 24, 22, 20, and 18 Ga. in un-embossed or non-directional embossed (18 Ga. not available) |
Joint | Overlapping |
Finishes & Colors | Standard I, Standard II, Premium I, and Premium II color options. Please see Color Chart below for all available colors. |
Fastening | Exposed Fastening System |
