HPCI Barrier™ Wall Panel

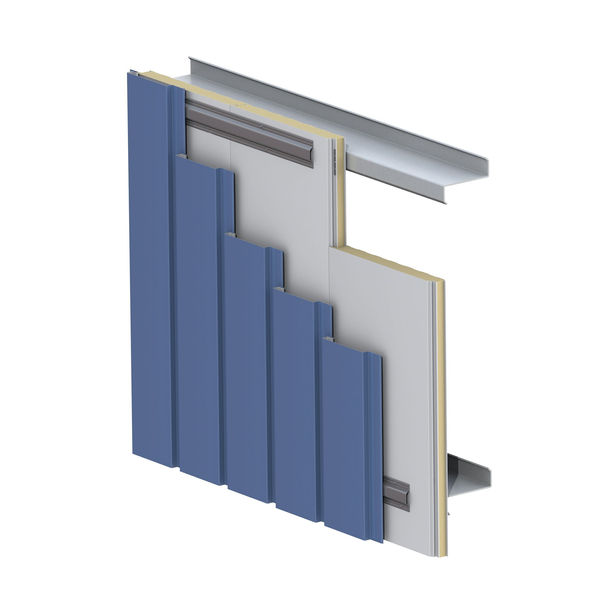

The HPCI Barrier™ insulated barrier wall system provides superior air, water, thermal and vapor protection in a single-panel component. This unique single panel insulated metal wall panel introduces new standards in cost savings, design integrity, and sustainability. Easily and quickly installed in a single step, HPCI Barrier wall panels eliminate the need for multiple work crews and therefore, minimizes construction debris while reducing the likelihood of improper installation.

The table indicates PUR values. For PIR values, please refer to the data sheet available under the Literature tab.

Coverage Width	42″
Thermal Values – R-Value & U-Factor	*U-Factor (BTU/h-ft2Fahrenheit) Panel Width: 42″ 2″ = 0.059 2.5″ = 0.046 3″ = 0.039 4″ = 0.029 5″ = 0.023 6″ = 0.019 R-Value (hft2F/BTU)** Panel Width: 42″ 2″ = 17.5 2.5″ = 21.9 3″ = 26.2 4″ = 35.0 5″ = 43.7 6″ = 52.5
Exterior Face	G-90 galvanized or AZ-50 aluminum-zinc coated steel in 26 Ga. minimum.
Interior Face	G-90 galvanized or AZ-50 aluminum-zinc coated steel in 26 Ga. minimum.
Joint	Offset double tongue-and-groove with extended metal shelf for positive face fastening.
Core	Foamed-in-place, PUR Foam Core, zero ozone depleting (zero ODP) Class 1 foam
Length	Non-Directional Embossed 8′-0″ to 32′-0″ Horizontal 8′-0″ to 52′-0″ Vertical
Thickness	2″, 2 ½”, 3″, 4″, 5″, 6″

K-Factor calculations: see data sheet. * Based on ASTM C518, ASTM C1363 and thermal modeling
