Exposed Fasteners

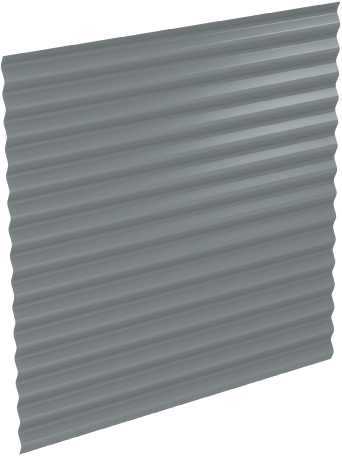

Econolap 3/4″

The Econolap 3/4”exposed fastener metal wall profile offers a more pronounced corrugation and increased span capability over most corrugated panels. When used in a wall application, the Econolap 3/4″ metal panel also side laps at the high cell. All Exposed Fastener metal wall panels may be installed in a variety of rainscreen applications to form a complete wall system. Systems may vary from an uninsulated screen wall to BW Systems and are available in a variety of rib heights, rib spacings, panel widths and slopes.

Width	34 2/3″
Height	3/4″
Length	5′-0″ to 40′-0″
Exterior Profile	3/4″ rib height on center with staggered patterns
Exterior Face	G90 galvanized steel 24, 22, 20, and 18 Ga. in un-embossed or non-directional embossed (18 Ga. not available)
Joint	Overlapping
Finishes & Colors	Standard I, Standard II, Premium I, and Premium II color options. Please see Color Chart below for all available colors.
Fastening	Exposed Fastening System
