CF Tuff Wall®
CF Tuff Wall®

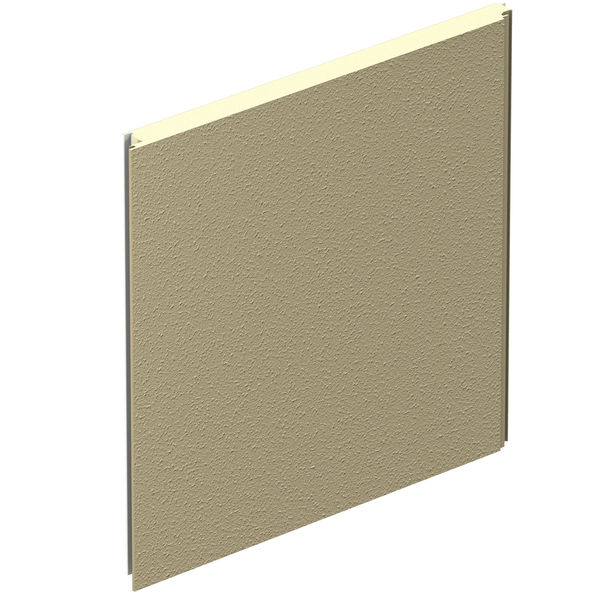

The Metl-Span CF Tuff Wall® is an attractive, stucco-like insulated metal wall panel that exhibits the natural beauty sought by many designers and owners. The exterior surface of the panel is a hard aggregated, fiber-reinforced polymer coating created with the factory-applied Tuff Cote® finish system. Tuff Cote® finish offers an extremely durable, impact and abrasion-resistant coating that can withstand severe weather conditions. CF Tuff Wall stucco insulated metal panels are the ideal panel to create the aesthetic appearance of a stucco wall with the impressive R-values and LEED opportunities of an insulated metal panel.
Coverage Width | 36″, 42″ |
Thermal Values – R-Value & U-Factor | U-Factor (BTU/h-ft2*Fahrenheit) Panel Width: 42″ 2″ = 0.058 2.5″ = 0.045 3″ = 0.038 4″ = 0.028 5″ = 0.022 6″ = 0.019 R-Value (h*ft2*F/BTU) Panel Width: 42″ 2″ = 17.9 2.5″ = 22.4 3″ = 26.9 4″ = 35.9 5″ = 44.8 6″ = 53.8 |
Exterior Face | G-90 galvanized or AZ-50 aluminum-zinc coated steel in 24 and 22 Ga. |
Interior Face | G-90 galvanized or AZ-50 aluminum-zinc coated steel in 26, 24 and 22 Ga. |
Exterior Texture | Tuff Cote® finish system—a hard aggregated fiber-reinforced polymer coating. |
Finishes | Applied Finishes, Igloo White |
Joint | Offset double tongue-and-groove with extended metal shelf for positive face fastening. |
Length | 8′-0″ to 40′-0″ |
**Based on ASTM C518, ASTM C1363 and thermal modeling
