CF Striated Wall Panel
CF Striated Wall Panel

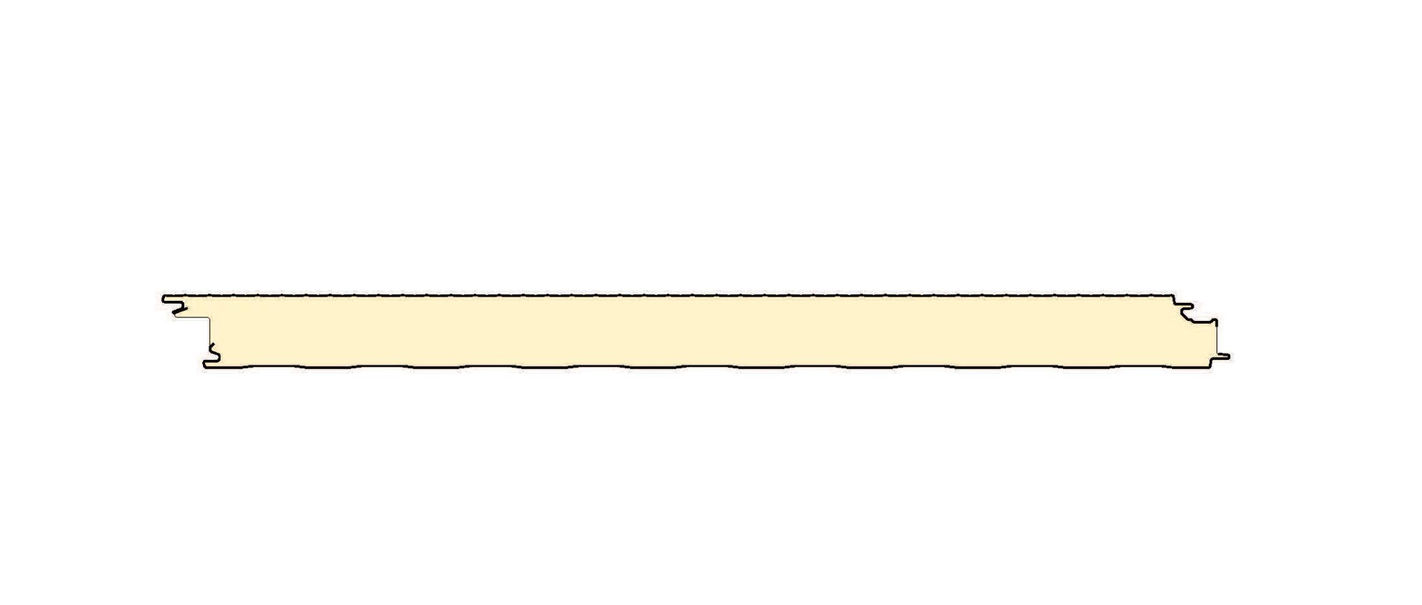

Metl-Span’s CF Striated metal panels are an appealing alternative to typical flat wall panels. The exterior face is lightly profiled with narrow longitudinal striations, creating a subtle shadow effect while exhibiting a virtually flat appearance from a distance. The longitudinal Striated metal panel is an exceptional value, combining the aesthetics of a flat wall panel with the high insulation ratings of an insulated foam core.
The table indicates PUR values. For PIR values, please refer to the data sheet available under the Literature tab.
Coverage Width | 24″*, 30″, 36″, 42″ |
Thermal Values – R-Value & U-Factor | U-Factor (BTU/h-ft2*Fahrenheit) Panel Width: 42″ 2″ = 0.059 2.5″ = 0.046 3″ = 0.039 4″ = 0.029 R-Value (h*ft2*F/BTU) Panel Width: 42″ 2″ = 17.5 2.5″ = 21.9 3″ = 26.2 4″ = 35.0 |
Exterior Face | G-90 galvanized or AZ-50 aluminum-zinc coated steel in 24 and 22 Ga. |
Interior Face | G-90 galvanized or AZ-50 aluminum-zinc coated steel in 26, 24 and 22 Ga. |
Finishes | Fluropon®, Fluropon® Premier, Fluropon® Classic, Flurothane®, Flurothane® Coastal, WeatherXL™, Igloo White Polyester |
Joint | Offset double tongue-and-groove with extended metal shelf for positive face fastening. |
Length | Non-Directional Embossed 8′-0″ to 32′-0″ Horizontal 8′-0″ to 40′-0″ for 24″, 30″, 36″ Vertical 8′-0″ to 32′-0″ for 42” Vertical Unembossed 8′-0″ to 16′-0″ Horizontal 8′-0″ to 16′-0″ Vertical |
Thickness | 2″, 21/2″, 23/4″*, 3″, 4″ |
**Based on ASTM C518, ASTM C1363 and thermal modeling, 35 degrees F core mean temp.
