CF Mesa

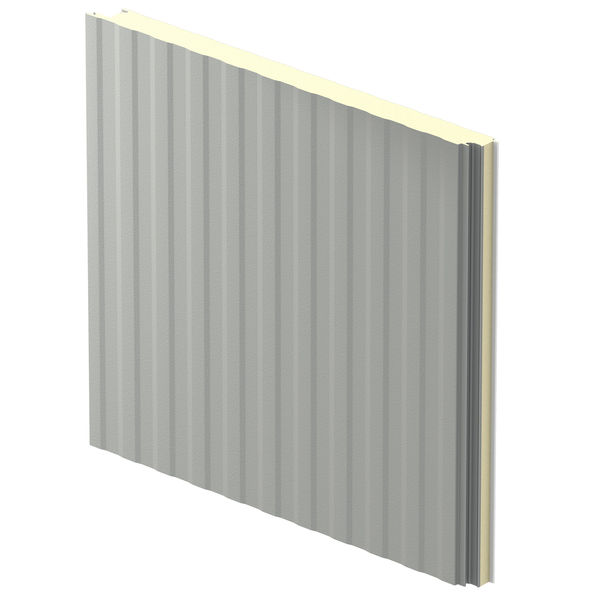

CF Mesa insulated metal panels are the total package when it comes to building envelope solutions. The low-profile corrugated panel of 1/8” rib not only offers thermal, vapor, and moisture barriers in a single component, but delivers high R-values to create an energy-efficient environment as well. The Mesa profile is designed with concealed clips to decrease thermal bridging and is well-equipped for exterior walls, interior walls, and ceiling applications. You can choose from an embossed or un-embossed profile with a face made of galvanized or aluminum-zinc-coated steel.

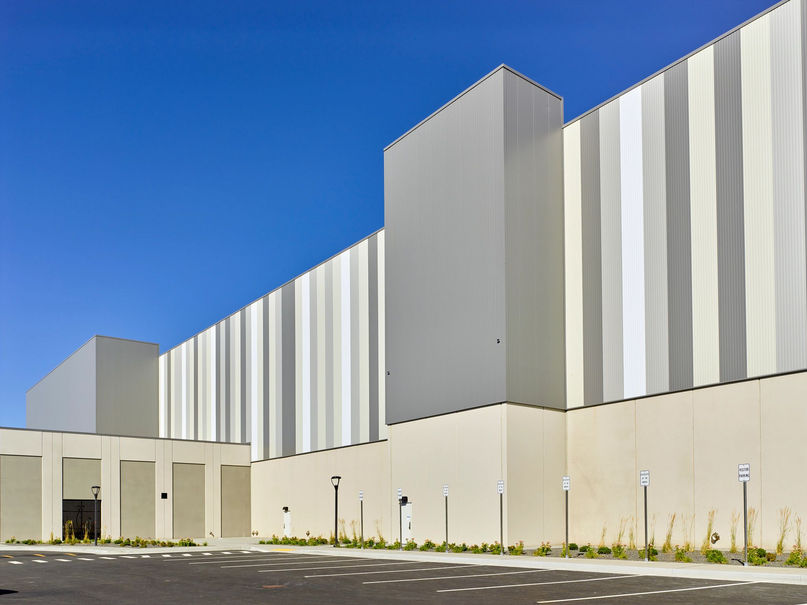

Similar to our CF Light Mesa panels, our CF Mesa insulated metal panels are used for commercial, institutional, and industrial buildings. By incorporating sustainability factors into their design, the Mesa profile adheres to green building standards where energy efficiency is paramount.

Mesa panels are also ideal for cold storage applications, including dry goods warehouses, cooler and freezer buildings, food processing facilities, and all temperature-controlled environments. Contact our representatives today to learn more!

The table indicates PUR values. For PIR values, please refer to the data sheet available under the Literature tab.

Coverage Width	30″*, 36″, 42″, 44″
Thermal Values – R-Value & U-Factor	*U-Factor (BTU/h-ft2Fahrenheit) Panel Width: 42″ 2″ = 0.059 2.5″ = 0.046 3″ = 0.039 4″ = 0.029 5″ = 0.023 6″ = 0.019 8″ = 0.014 R-Value (hft2F/BTU)** Panel Width: 42″ 2″ = 17.5 2.5″ = 21.9 3″ = 26.2 4″ = 35.0 5″ = 43.7 6″ = 52.5 8″ = 70.0
Exterior Face	G-90 galvanized or AZ-50 aluminum-zinc coated steel in 26, 24 or 22 Ga.
Interior Face	G-90 galvanized or AZ-50 aluminum-zinc coated steel in 26, 24 or 22~ Ga.
Finishes	Fluropon®, Fluropon® Premier, Fluropon® Classic, Flurothane®, Flurothane® Coastal, WeatherXL™, Igloo White Polyester
Joint	Offset double tongue-and-groove with extended metal for positive face fastening.
Length	Non-Directional Embossed 8′-0″ to 32′-0″ Horizontal 8′-0″ to 52′-0″ Vertical Unembossed 8′-0″ to 16′-0″ Horizontal 8′-0″ to 40′-0″ Vertical
Thickness	2″, 2 ½”, 3″, 4″, 5″, 6″, 8″

** Based on ASTM C518, ASTM C1363 and thermal modeling

~ 22 Ga not available for stainless steel
