CF Flute Wall Panel

CF Flute Wall Panel

CF Flute Wall Panel

The CF Flute exterior insulated metal wall panels are ideal for commercial, institutional, and industrial applications. The fluted wall panel’s ribbed profile provides bold vertical reveals, complimenting almost any building design. The profile exhibits traditional styling with distinctive vertical lines and can be used in conjunction with other Metl-Span profiles.


For use as an exterior wall to create a distinctive building profile where temperature control and insulation values are critical to the performance of the building, Flute panels are ideal for cold storage applications, including dry goods warehouses, cooler and freezer buildings, and food processing facilities. Flute panels are for all temperature-controlled environments where maintaining temperature control and insulation values are critical. Metl-Span also offers USDA-compliant stainless steel for use in washdown areas. Contact our representatives today to learn.


The table indicates PUR values. For PIR values, please refer to the data sheet available under the Literature tab.

Coverage Width

42″

Thermal Values – R-Value & U-Factor

U-Factor (BTU/h-ft2*Fahrenheit)

Panel Width: 42″

2″ = 0.060

2.5″ = 0.047

3″ = 0.039

4″ = 0.029

5″ = 0.023

6″ = 0.020

8″ = 0.015


R-Value (h*ft2*F/BTU)

Panel Width: 42″

2″ = 17.5

2.5″ = 21.9

3″ = 26.2

4″ = 35.0

5″ = 43.7

6″ = 52.5

8″ = 70.0

Exterior Face

G-90 galvanized or AZ-50 aluminum-zinc coated steel in 26, 24 or 22 Ga. Not available in unembossed.

Interior Face

G-90 galvanized or AZ-50 aluminum-zinc coated steel or 304 or 316 stainless steel in 26, 24, and 22~ Ga.

Finishes

Fluropon®, Fluropon® Premier, Fluropon® Classic, Flurothane®, Flurothane® Coastal, WeatherXL™, Igloo White Polyester

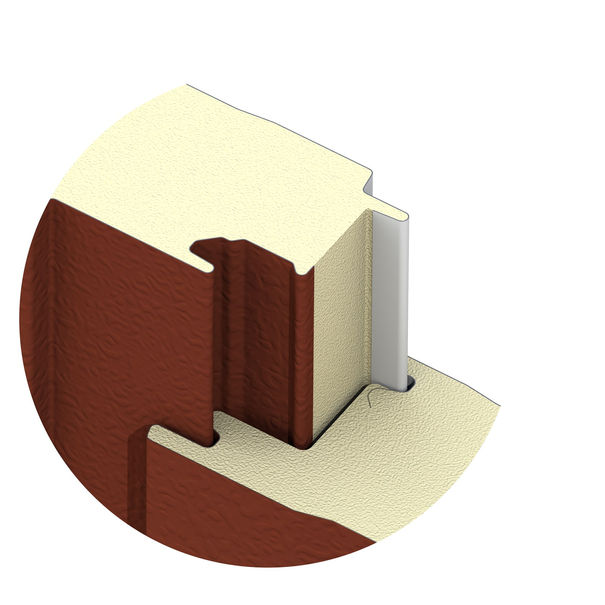

Joint

Offset double tongue-and-groove with extended metal shelf for positive face fastening.

Length

Non-Directional Embossed

8′-0″ to 32′-0″ Horizontal

8′-0″ to 52′-0″ Vertical

Thickness

2″, 2 ½”, 2 ¾”*, 3″, 4″, 5″, 6″, 8″

*Available only from Nevada plant

•• Based on ASTM C518, ASTM C1363 and thermal modeling

~ 22 Ga not available for stainless steel
