CF 7.2 Insul-Rib™ Wall Panel

CF 7.2 Insul-Rib™ insulated and ribbed metal wall panel combines a traditional 7.2 ribbed panel design with an insulated foam core. Ideal for any commercial or industrial application, our panels provide the strength and durability of ribbed metal panels along with the thermal performance of an insulated metal panel. The 7.2 panel’s bold yet ribbed pattern compliments its unique industrial appearance. Its distinctive exterior creates a shadow effect while adding texture, differentiating it from other panels. Since the panel is capable of being installed both vertically and horizontally, architects can be flexible when it comes to design.

Our panels are designed with the lock-and-groove system, allowing for an overall efficient installation, while simultaneously reducing construction labor costs. They are also capable of being combined with other CF joint profiles of the same thickness to create a visually appealing look.

Coverage Width	Nominal 36″
Thermal Values – R-Value & U-Factor	U-Factor(BTU/h-ft2fahrenheit) Panel Width: 36″ 3″ = 0.066 4″ = 0.043 R-Value (hft2*F/BTU) Panel Width: 36″ 3″ = 15.2 4″ = 23.3
Exterior Face	G-90 galvanized or AZ-50 aluminum-zinc coated steel in 26, 24 or 22** Ga.
Interior Face	G-90 galvanized or AZ-50 aluminum-zinc coated steel in 26, 24 or 22 Ga.
Finishes	Fluropon®, Fluropon® Premier, Fluropon® Classic, Flurothane®, Flurothane® Coastal, WeatherXL™, Igloo White Polyester

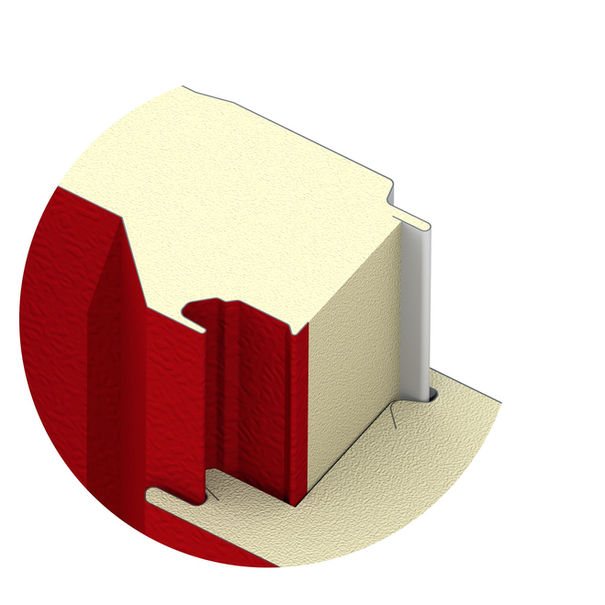

Joint	Offset double tongue-and-groove with extended metal shelf for positive face fastening, through fastening required at panel ends.
Length	Non-Directional Embossed 8′-0″ to 32′-0″ Horizontal 8′-0″ to 40′-0″ Vertical Unembossed 8′-0″ to 32′-0″ Horizontal 8′-0″ to 40′-0″ Vertical
Thickness	3″, 4″ (Rib height included in thickness)

* Based on ASTM C518, ASTM C1363 and thermal modeling.

** Not available in unembossed. ***Through fastening required at panels ends. Ribbed portion of the panel is not included in R Values.
